Units of Measurement
This tool allows you to attach units of measurement directly to the names of Attributes, Values, or Duty Templates.

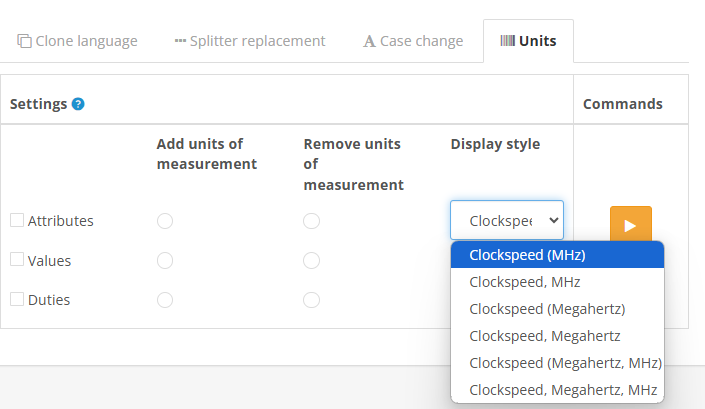

The display style for units of measurement is selected from a dropdown list.
 |
|---|
| Tools for Unit unification |

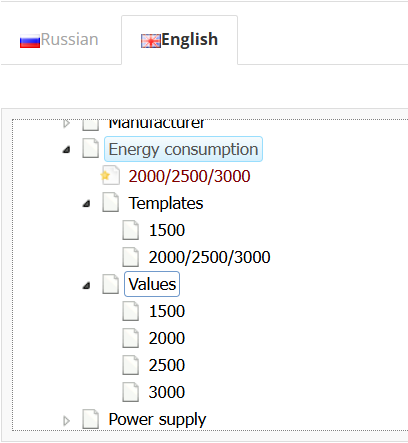

Attributes Before Applying the Tool
 |
|---|
| Display before attaching units |

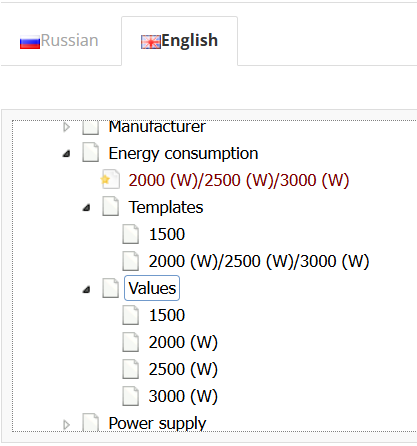

Example for Values and Duty Templates
 |
|---|
| Display after attaching units |
Units of measurement are attached to each Value, even if they are separated by a delimiter.
Note that the Value 1500 remains unchanged.
info
Units of measurement must be stored in the metadata; otherwise, there will be nothing to attach.

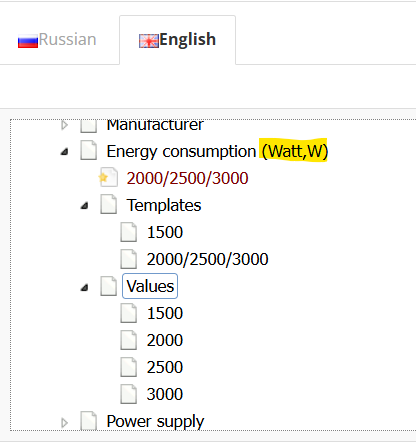

Example for Attributes
You can avoid overloading the view with information by attaching units of measurement only to the attribute.
 |
|---|
| Display in Attribute name |
info
Avoid using this tool if you intend to enable visibility of units of measurement only on the frontend.
